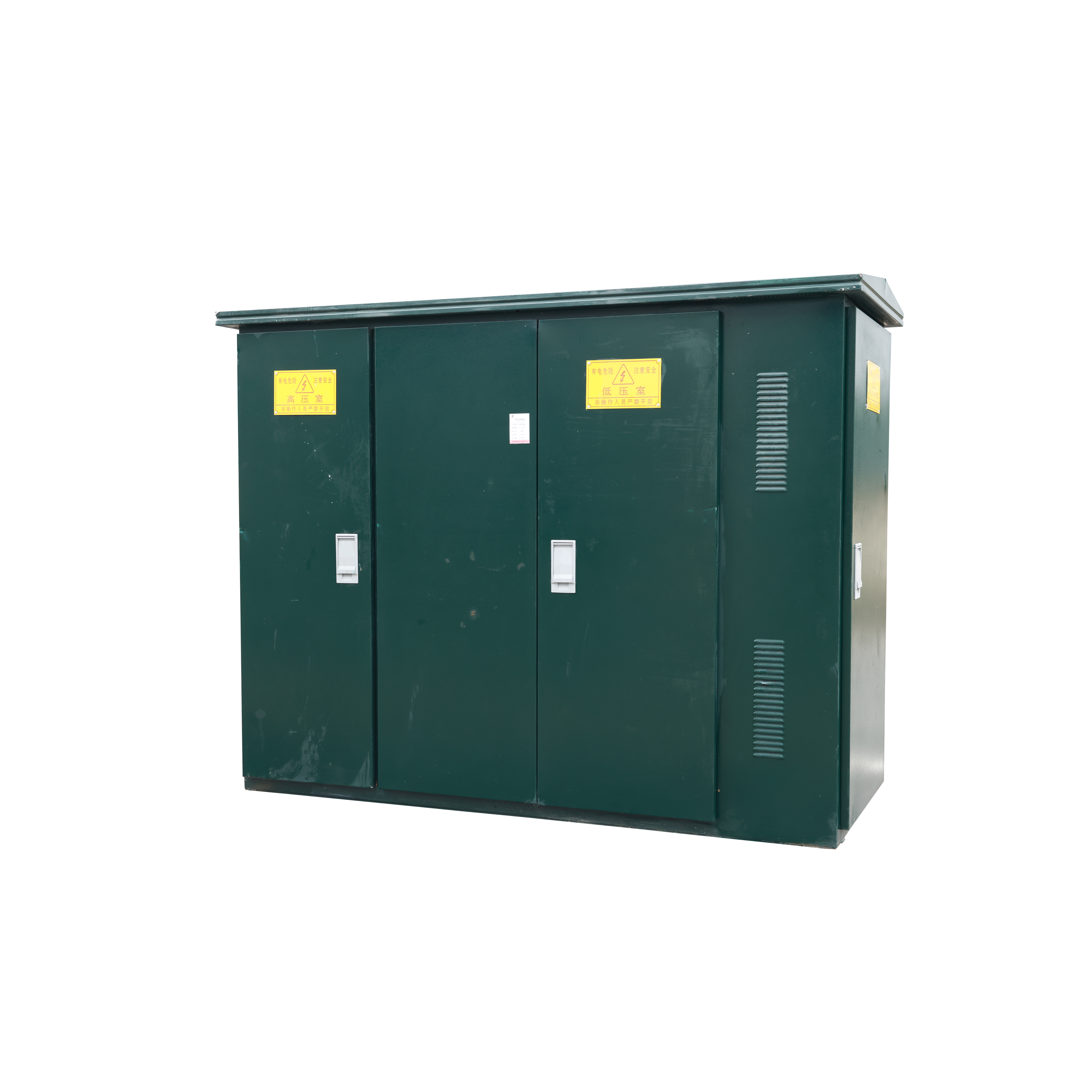

ZGS American Style Box Transformer

Zgs Combined Transformer Overload Protection American Style

Product Name: ZG(F)S Series Prefabricated Substation (American Box Transformer)

Overview: The ZG(F)S Series Compact and Flexible Combined Transformer is a versatile, all-in-one power distribution and transformation solution that integrates the transformer body, high-voltage load switch, and protective fuses within a single, compact unit. Available in both common tank and separate tank configurations, this transformer is designed for space efficiency and ease of installation.

Padmount Transformer Key Features:

• Integration: Combines transformer, high-voltage switchgear, and protection devices in one unit.
• Compact Design: Reduces the overall size to 1/5 to 1/3 of traditional box-type transformers.
• Safety: Full insulation and no required insulating distances ensure operator safety.
• Versatility: Suitable for a wide range of environments, including those with severe weather and high pollution.
• Maintenance: Sealed design requires minimal maintenance.
• Customization: Space provided within the low-voltage compartment for additional customer-specific equipment.
• Protection: Dual fuse protection system for overload and short-circuit safety.
• Reliability: High-voltage load switches offer reliable load current interruption.
• Cost-Effective: Reduces substation investment and installation costs due to its compact design.
• Flexibility: Can be used in both ring networks and terminal configurations.
• Overload Capability: Capable of withstanding 2 times the load for 2 hours and 1.6 times the load for 7 hours.
• Emergency Operation: Elbow-type cable Connectors function as load switches in emergency situations.
• Fire Safety: Utilizes high-flash-point oil, making it safe for indoor placement.

Applications: Ideal for new residential areas, green spaces, parks, transportation hubs, hospitality venues, construction sites, and airports.

Technical Highlights:

• Aesthetics: Modern and visually appealing design.
• Structure: Densely packed components for a small footprint.
• Size: Compact, reducing the physical space required.
• Modularity: Easy to disassemble and reconfigure as needed.
• Ease of Use: Designed for user-friendly operation and maintenance.
• Sealing: Complete sealing against environmental factors.
• Safety Measures: Advanced Anti-corrosion design and special painting treatment for harsh conditions.
• Component Layout: Logical separation of high and low voltage components for safety.
• Transformer Protection: Insert-type and backup fuses for comprehensive protection.
• Switchgear: Small form factor high-voltage load switches for convenience and reliability.
• Investment Reduction: Minimized initial investment and installation expenses.
• Sealed and Insulated: No need for additional insulating measures.
• Network Flexibility: Easily convertible between ring and terminal network configurations.
• Cable接头s: Elbow-type Connectors for emergency switching and isolation.
• Oil Type: High Ignition point oil to prevent fire hazards indoors.

Advantages:

1. Aesthetic appeal
2. Compact structure
3. Small size
4. Easy assembly and disassembly
5. User-friendly
6. Fully sealed
