Dry Type Transformer

Dry type transformers are electrical devices that use air or gas for insulation and cooling, rather than liquid. They are known for their safety, environmental compatibility, and low maintenance requirements. Here's an overview of dry type transformers, including their types, features, and applications:

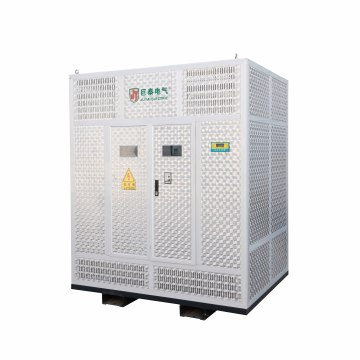

Types of Dry Type Transformers

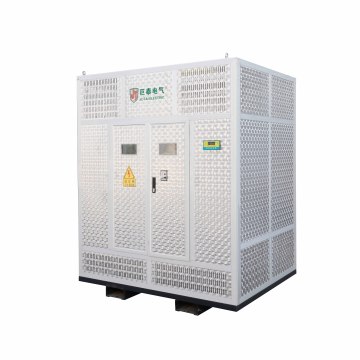

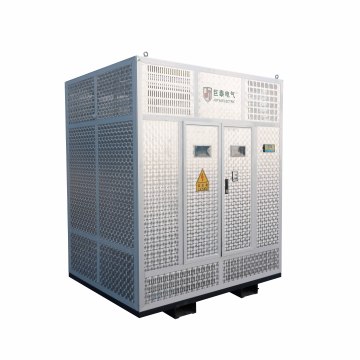

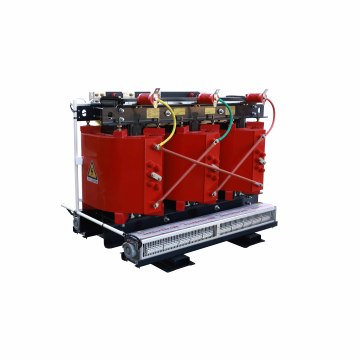

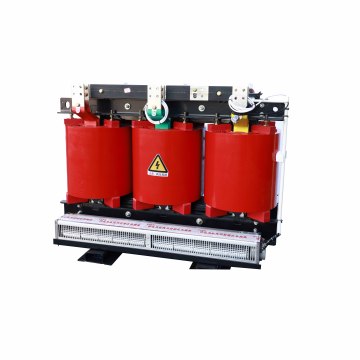

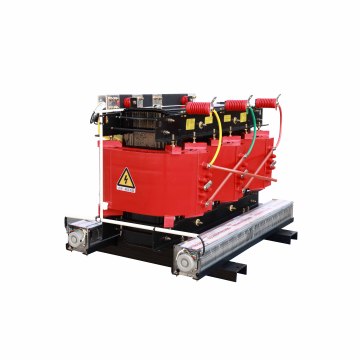

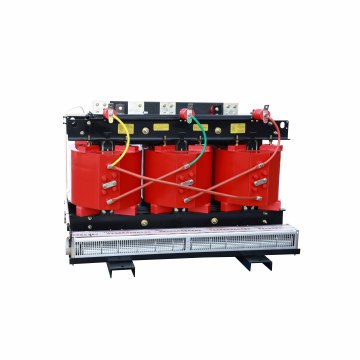

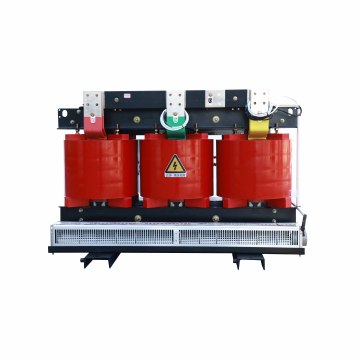

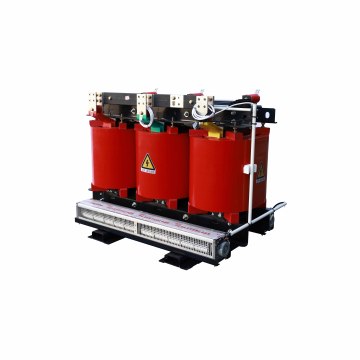

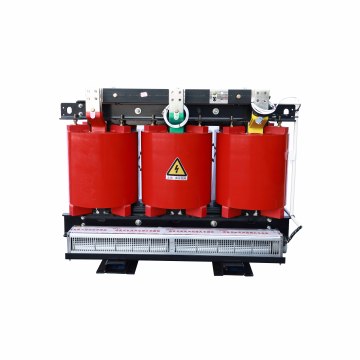

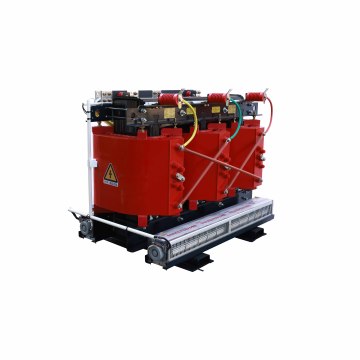

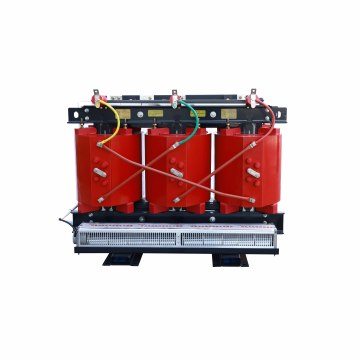

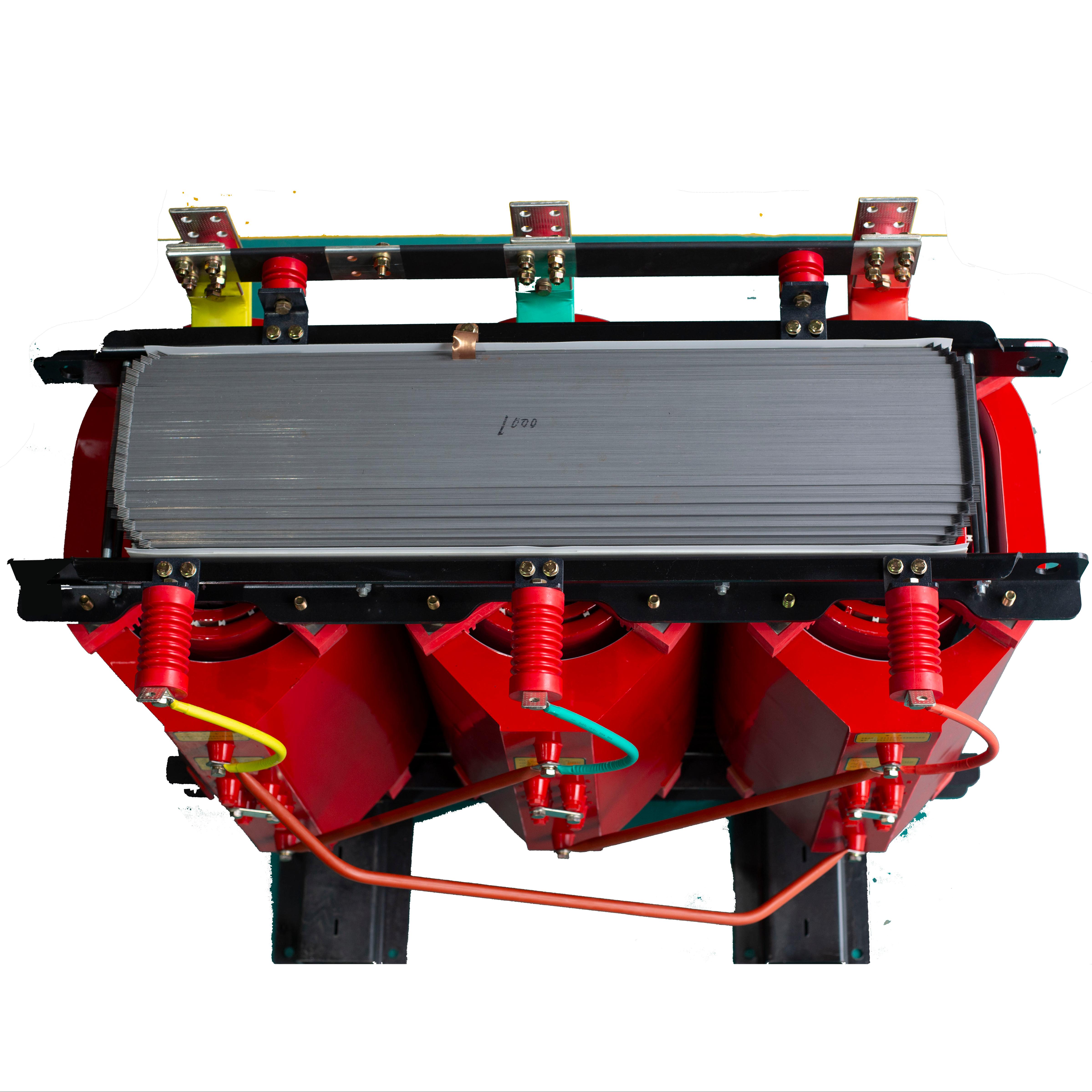

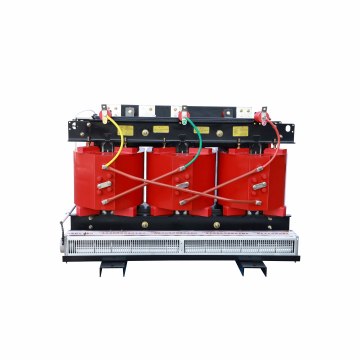

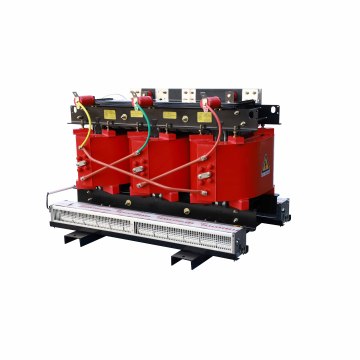

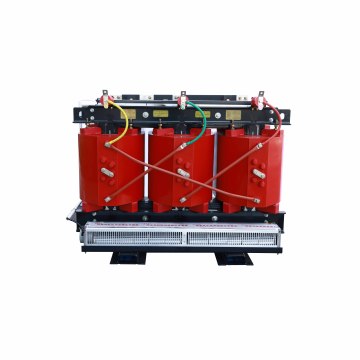

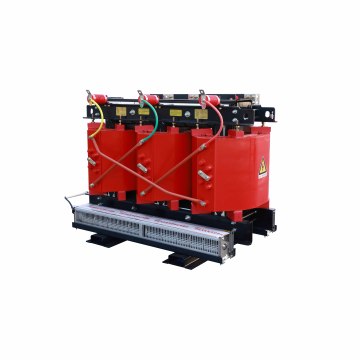

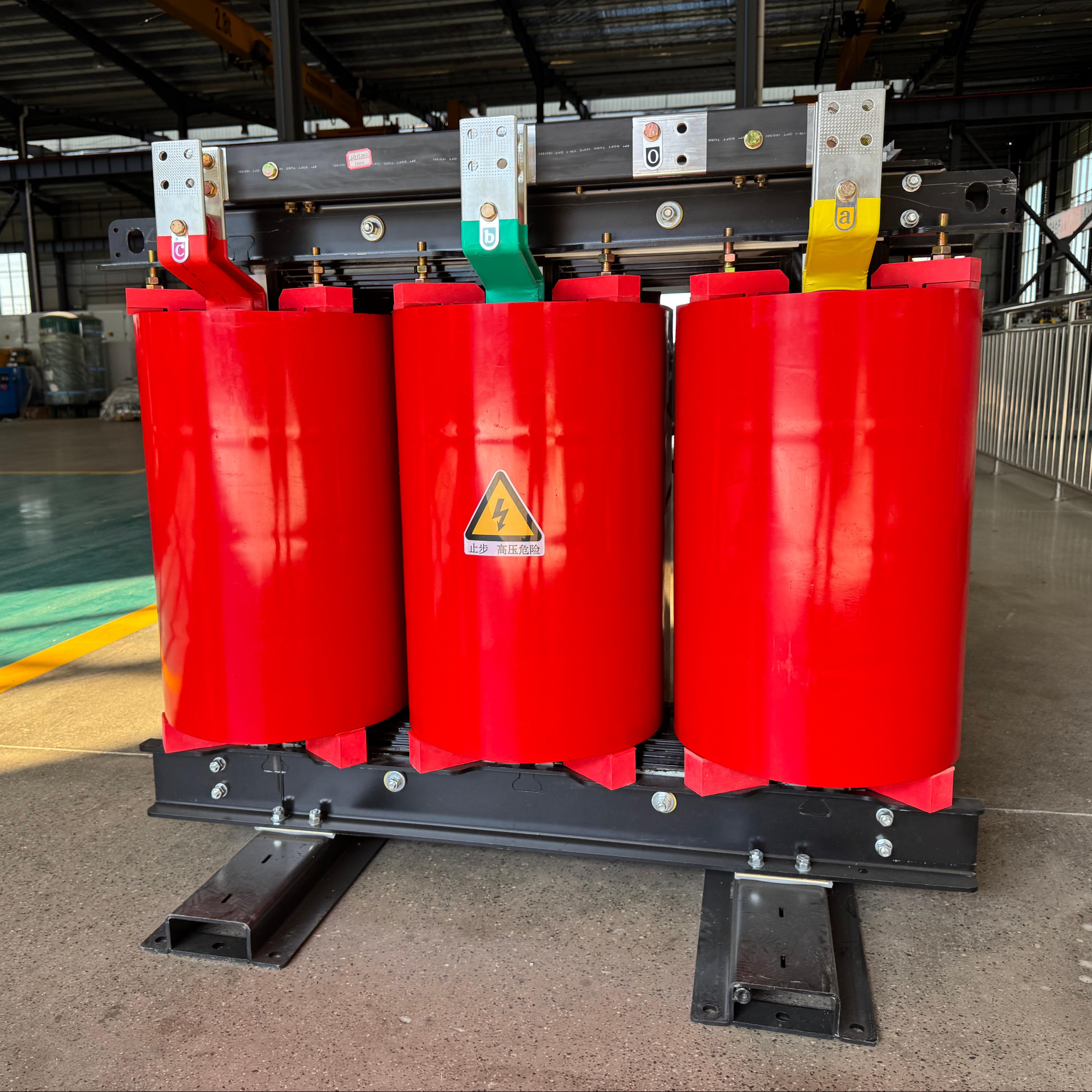

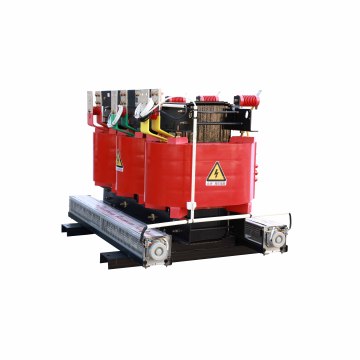

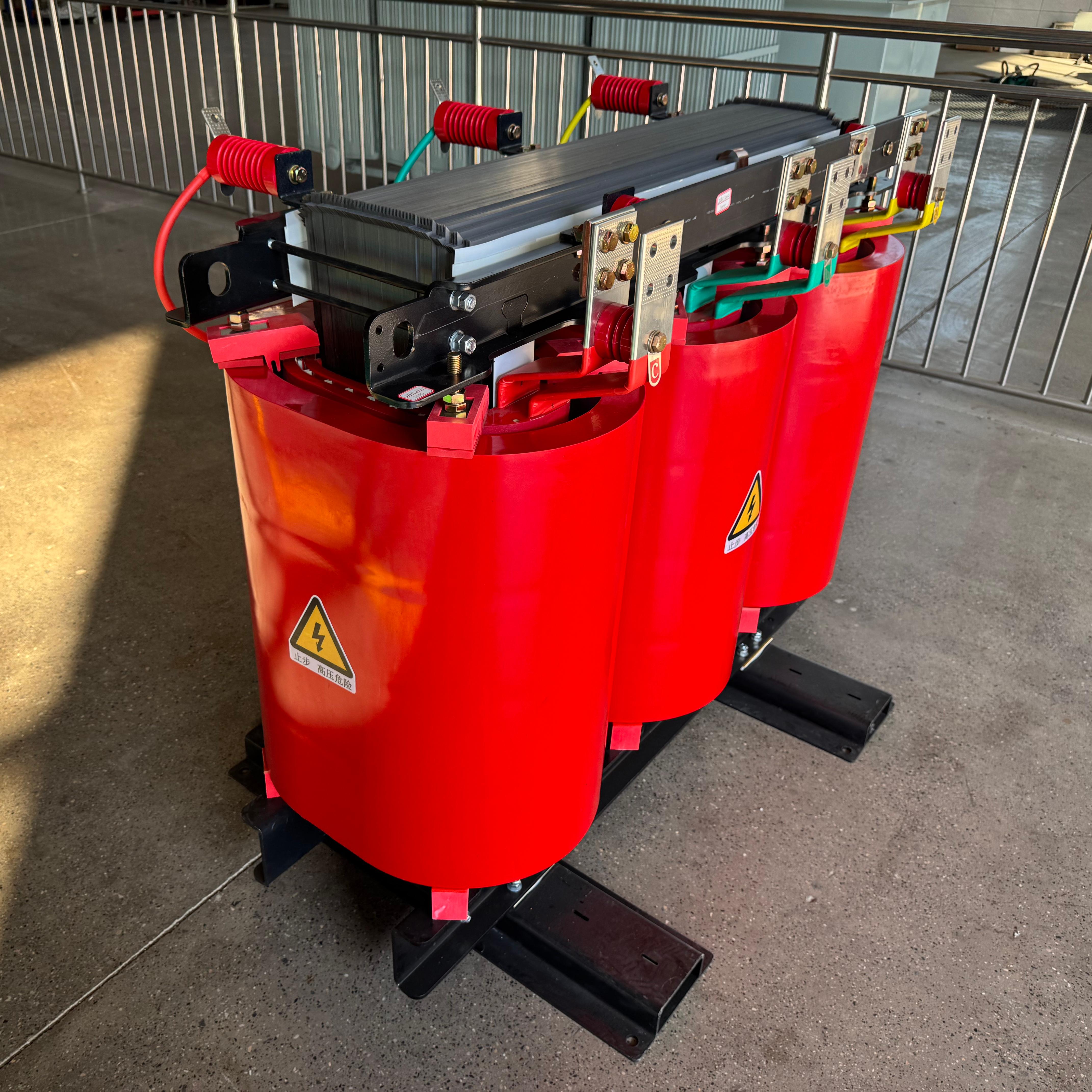

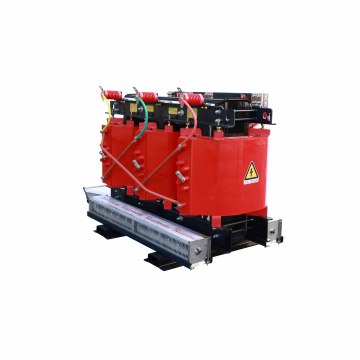

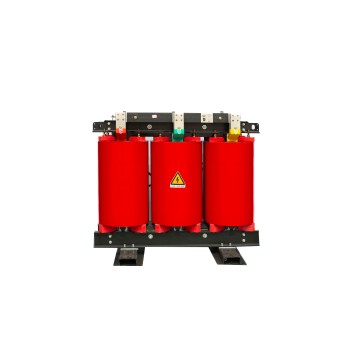

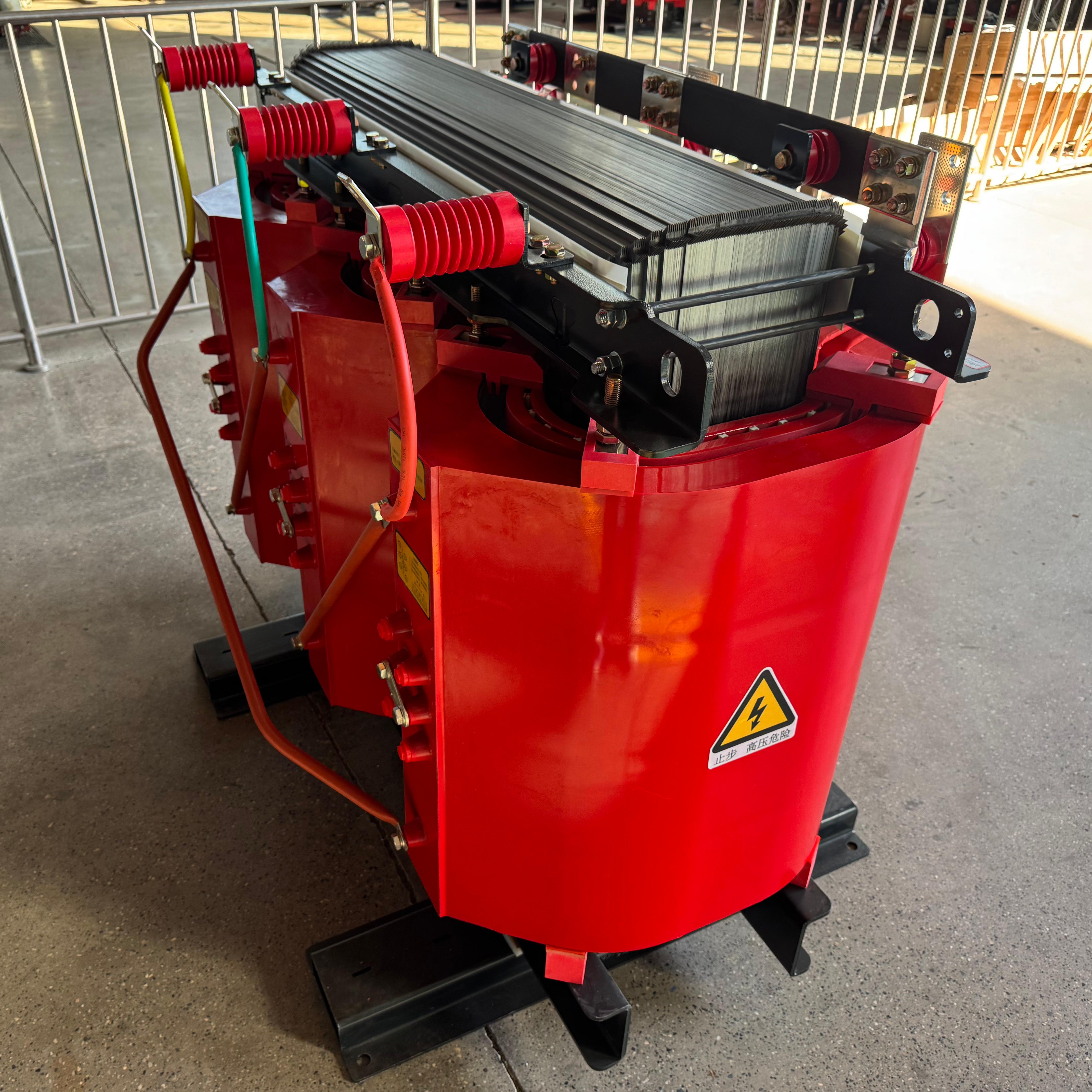

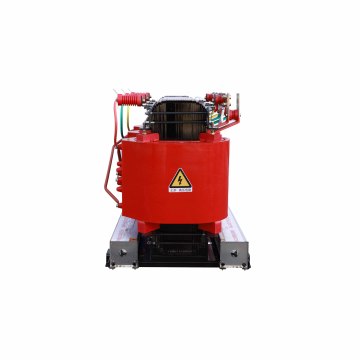

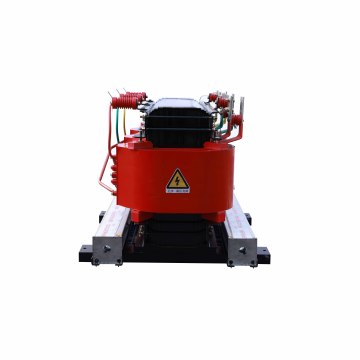

1. Cast Resin Dry Type Transformer (CRT): These transformers use epoxy resin to encapsulate their primary and secondary windings, offering protection from moisture, dust, corrosion, and other environmental factors. They are suitable for high humidity areas, indoor installations, and fire-risk areas due to their non-hygroscopic, non-inflammable nature, and maintenance-free operation .

2. Vacuum Pressure Impregnated Transformer (VPI): VPI transformers use class H polyester resin to impregnate their windings under vacuum and pressure, eliminating air gaps or voids in the insulation and enhancing mechanical strength, dielectric strength, and thermal stability. They are suitable for outdoor installations, seismic events, and temperature fluctuations .

3. Open-Wound Transformers: These consist of coils wound around a core with no enclosure, providing excellent cooling properties but are more susceptible to environmental factors .

4. Cast Coil Transformers: The windings are completely enclosed in epoxy resin, offering excellent protection against moisture and contaminants, and are often used in harsh environments .

5. Encapsulated Transformers: Their windings are enclosed in epoxy or other resin materials, providing protection against moisture and environmental factors, suitable for indoor and outdoor applications .

6. Self-Air Cooled Transformers: Rely on natural convection for cooling, designed with cooling fins or coils to facilitate heat dissipation, often used in low-to-medium power applications and indoor environments .

7. Forced-Air Cooled Transformers: Use fans or blowers to enhance cooling, suitable for applications where higher power ratings or better cooling performance are required, commonly used in industrial settings .

8. K-Rated Transformers: Designed to handle non-linear loads created by devices such as computers, variable frequency drives (VFDs), and LED lighting systems, with special winding designs and insulation to minimize the effects of harmonic currents and voltage distortion .

9. Drive Isolation Transformers: Used to isolate and protect variable frequency drives (VFDs) and other sensitive electronic equipment from power line disturbances, often with low leakage inductance and designed to handle high-frequency switching harmonics generated by VFDs .

10. Harmonic Mitigating Transformers: Designed to reduce the levels of harmonic currents and voltage distortion in power systems, used in applications where harmonic distortion can cause problems, such as overheating of equipment or interference with other electronic devices .

Features of Dry Type Transformers

• Safety: Dry type transformers are safer to operate due to their non-inflammable winding insulation and lack of oil, reducing the risk of fire hazards .
• Environmental Compatibility: They are more environmentally friendly than oil-filled transformers, using less energy and producing less waste oil .
• Low Maintenance: Due to their solid insulation, dry type transformers require minimal maintenance and have a long service life .
• Overload Capacity: They can handle short-term overloads above the rated capacity, accommodating occasional spikes in power demand .
• Versatility: Suitable for a wide range of applications, including those with high humidity, fire risk, and seismic events .

Applications of Dry Type Transformers

Dry type transformers are used in various industries and applications that require high safety, reliability, and environmental compatibility, such as:

• Chemical, Oil, and Gas Industry: For their resistance to hazardous environments and non-flammable properties .
• Environmentally Sensitive Areas: Due to their eco-friendly nature and reduced environmental impact .
• Fire-Risk Areas: Because of their low fire risk and non-inflammable insulation .
• Renewable Generation: In solar and wind power systems where safety and reliability are crucial .

In conclusion, dry type transformers offer a reliable and safe alternative to oil-filled transformers, with the added benefits of environmental compatibility and low maintenance requirements, making them suitable for a wide range of applications where safety and performance are paramount.
