10kV Dry-type power transformer

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

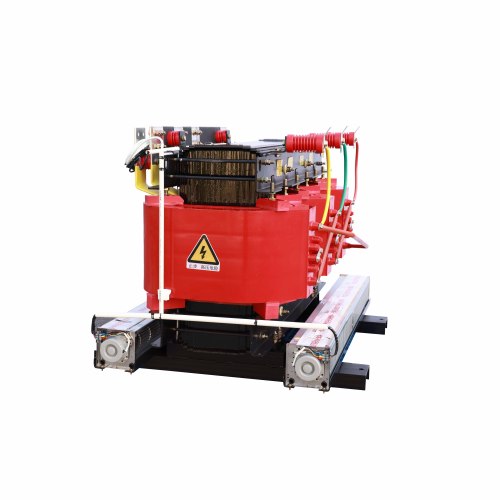

10kv Cast Resin Dry Type Power Transformer

Premium Dry Type Three-Phase Transformer for Reliable Power Supply

Our Dry type Power Transformer are meticulously engineered for excellence, seamlessly blending cutting-edge electrical engineering with state-of-the-art manufacturing techniques. These transformers belong to the esteemed SC(B)10, SC(B)11, and SC(B)13 series, purposefully designed to meet the ever-evolving demands of modern power distribution with unparalleled efficiency, safety, and minimal environmental impact. By incorporating advanced features and adhering to stringent quality standards, our transformers provide a reliable and sustainable power solution for a wide range of applications.

Technical Specifications

Core Construction

Utilizing premium cold-rolled grain-oriented silicon steel sheets, our transformers feature a 45° full-bevel joint and a five-step lamination process. This advanced core construction significantly reduces no-load losses and minimizes noise, resulting in enhanced energy efficiency and a quieter operation.

Winding Specifications

High-voltage winding: Crafted from double glass enameled copper wire, the high-voltage winding is insulated with H-grade glass fiber cloth and mat insulation. This combination ensures superior electrical performance, mechanical strength, and resistance to thermal and mechanical stresses.
Low-voltage winding: Consisting of copper foil with epoxy resin prepreg cloth, the low-voltage winding offers enhanced mechanical strength and short-circuit endurance. The epoxy resin impregnation provides additional protection against moisture and environmental factors, ensuring stable and efficient power delivery.

Clamping System

Made from low-magnetic steel, the clamping system is treated with sandblasting and powder coating for enhanced durability and a professional appearance. This robust clamping system ensures the structural integrity of the transformer and maintains its performance under various operating conditions.

Cooling System

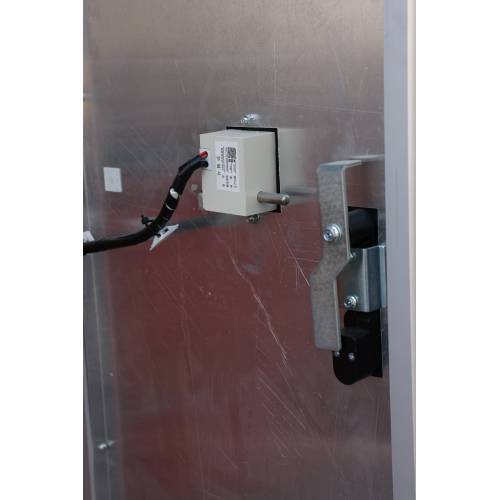

Each phase of the transformer is equipped with an axial flow fan and a temperature controller, working in tandem to provide efficient heat dissipation. This cooling system maximizes the transformer's capacity and prevents overheating, ensuring optimal performance and extending the service life of the transformer.

Application fields

High-end commercial and urban infrastructure fields • Urban smart grid upgrade: Provide high-reliability ring network solutions for urban core area distribution networks, support power quality optimization and rapid fault isolation in load-intensive areas, and ensure urban power supply continuity. • Super high-rise building power center: Aiming at the vertical power distribution needs of buildings over 100 meters, it integrates intelligent monitoring and segment protection functions to solve the cable voltage drop and short-circuit current management problems, and ensures the three-level redundancy of super high-rise power systems. Key power guarantee for transportation hubs • Airport runway navigation system: Surge-proof distribution unit designed for runway lighting circuits, meets ICAO emergency power supply standards, supports seamless switching of dual-channel UPS, and ensures aviation control power safety in extreme weather. Special environment industrial applications • Offshore drilling and production platform explosion-proof system: ATEX-certified anti-corrosion box transformer, integrated power distribution function between offshore platform modules, adapts to salt spray and high humidity environments, and has built-in gas leak linkage cut-off protection. Emergency power for large public facilities • Intelligent power distribution system for tunnels: Multi-node optical fiber longitudinal differential protection solution, realizing hierarchical power supply for lighting, ventilation and monitoring systems in long tunnels over 10 km, and automatically executing emergency power switching sequence under fire conditions.
