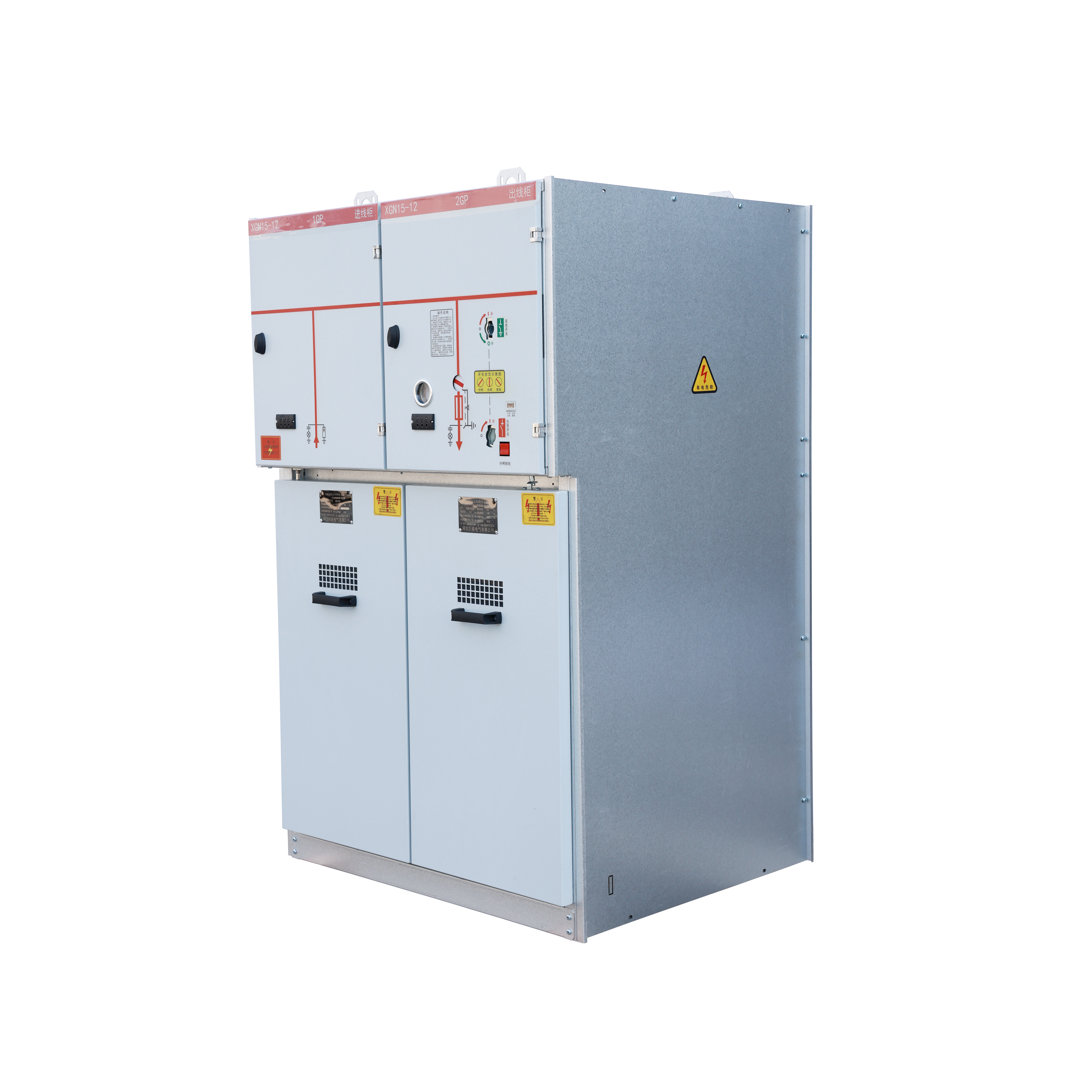

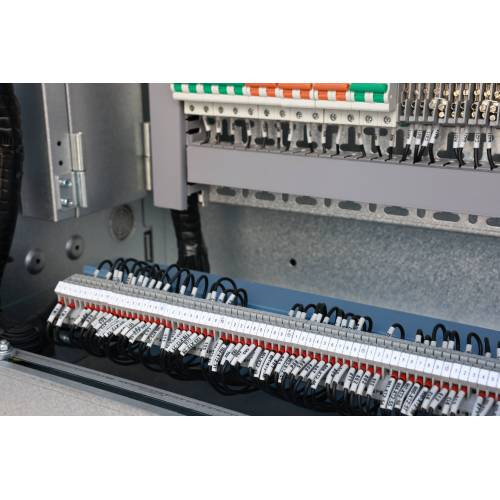

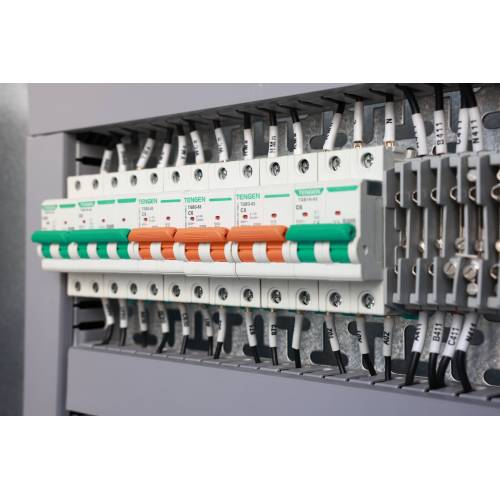

HXGN-12AC Metal Enclosed Ring Main Unit Switchgear

HXGN-12 AC Metal Enclosed Ring Main Unit

Product Outline: XGN2-12 Fixed Metal Enclosed Switchgear

Summary: The XGN2-12 Fixed Metal Closed Switchgear is a medium-voltage switchgear system that has been meticulously designed to offer superior safety, performance, and adaptability in power distribution. It is an essential component for industries requiring a high level of reliability in their electrical power management.

Technical Details:

• Rated Voltage: 12kV, meeting the needs of medium-voltage electrical systems.
• Frequency: 50Hz, in accordance with the standard frequency of power grids.
• Rated Current: Various configurations available to accommodate different load specifications.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, ensuring safety during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, protecting against the ingress of solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Typically ranges from 800 to 1100kg, depending on the specific configuration.

Product Highlights:

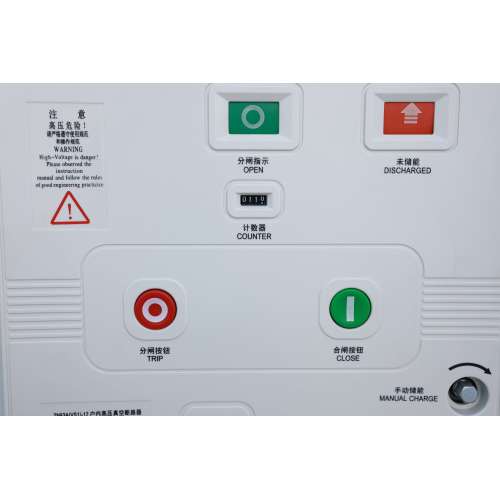

The air gap between all live parts in the cabinet and the ground is ≥125 mm. The creepage distance of the insulating parts meets the national standard requirements. The insulating materials are all epoxy or SMC, which improves the insulating level and mechanical strength of the switch cabinet. The protection level is IP3X. It is equipped with a vacuum circuit breaker inlet and outlet solution to meet the needs of large system short-circuit capacity, and is equipped with reliable intelligent protection devices to ensure the realization of various protection functions; it is safe and convenient to use. The load switch has a static contact insulation cover to prevent arc short-circuit accidents in the cabinet. The insulation cover has a removable metal valve. When the grounding switch is closed, the metal valve is closed at the same time, which can ensure the personal safety of workers who repair switches and other equipment and replace fuses.

Operational Environment:

• Ambient Temperature: Designed to operate in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Capable of operating in high humidity conditions without performance degradation.

Storage and Transportation:

• Storage: Should be kept in its original packaging to maintain its integrity.
• Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Choose XGN2-12:

• Compliance with Standards: Adheres to international safety and performance standards.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand harsh conditions and provide long-term reliability.
• Maintenance-Friendly Design: Engineered for easy maintenance to extend service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a symbol of reliability and safety in medium-voltage power distribution, offering a comprehensive solution for the energy management needs of various industries. Its advanced features and robust design ensure that it meets the demanding requirements of today’s electrical infrastructure.
