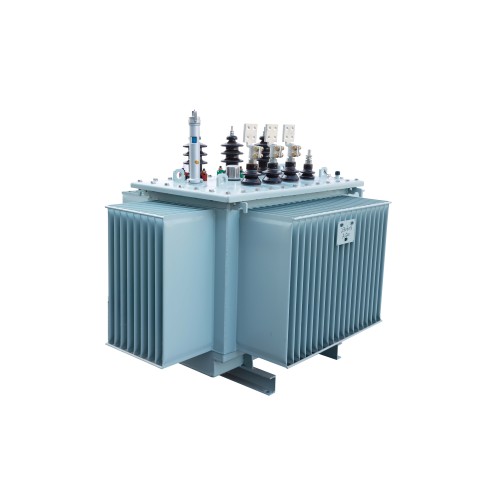

Superior 10kV Oil Transformer

S11 Series Oil-Filled Transformer: Pioneering Efficiency and Sustainability in Power Distribution

Introduction: The S11 series Oil-immersed Transformer represent a significant evolution in power distribution technology, designed to enhance energy efficiency and meet stringent environmental compliance standards. These transformers advance the legacy of the S9 and S10 models, focusing on sustainability and superior performance.

Key Features:

1. Energy Efficiency:

   • Achieve a 30% reduction in no-load losses compared to the S9 series, significantly lowering operational costs and environmental impact.

2. Structural Design:

   • Incorporate a simple, rational design that ensures excellent strength, light weight, and improved oil circulation for superior heat dissipation and minimal energy loss.

3. Regulatory Compliance:

   • Manufactured to meet the stringent standards of the International Electrotechnical Commission (IEC) 60076 and the People's Republic of China National Standard GB1094.

Technical Specifications:

• Core Material:

  • Utilize high-quality cold-rolled grain-oriented silicon steel sheets for optimal magnetic properties and reduced core losses.

• Core Design:

  • Employ a multi-step progressive full-lap joint structure for enhanced efficiency and durability.

• Winding:

  • Design low voltage winding for compactness and strength, reducing radial forces during short circuits and enhancing resilience.

Applications:

The S11 series Oil-Filled Transformer are versatile and suitable for a wide range of applications, including:

• Power generation facilities for efficient energy production.
• Electrical transmission networks for reliable power distribution.
• Petrochemical industries for stable power supply.
• Metallurgical plants for demanding power requirements.
• Industrial and mining operations for continuous operations.
• Urban infrastructure projects, including airports, subways, docks, and residential areas, for sustainable power solutions.

Performance Benefits:

1. Economic Performance:

   • Provide a cost-effective solution with a balance of technical and economic benefits.

2. Extended Lifespan:

   • Engineered for durability, ensuring a long service life with minimal maintenance.

3. Operational Reliability:

   • Ensure high levels of operational dependability, contributing to the stability of the power grid.

4. Space Optimization:

   • Designed to occupy minimal space, optimizing spatial utilization in power distribution facilities.

Conclusion:

The S11 series Oil Immersed Distribution Transformer represent a commitment to innovation and sustainability in power distribution, setting a new standard for performance and environmental responsibility. They are designed to meet the challenges of modern power infrastructure, providing a reliable and efficient solution for a greener future.
