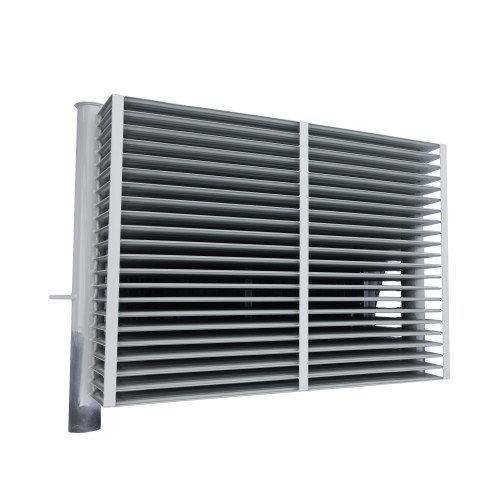

Oil Immersed Transformer Radiator

Fixed Transformer Fin Heat Sink Design

Transformer Components Product Description: Premium Oil-immersed Transformer Heat Sink

Introduction: We are proud to present our premium line of oil-immersed Transformer Cooling Radiator, crafted with precision and designed for exceptional performance in thermal management. The fin radiators produced by our factory include various series of specifications such as fixed, detachable, bottom-blown and hot-dip galvanized, and the fin widths have various specifications. In addition, our company can also design and manufacture fin radiators of special specifications according to user needs.

Key Highlights:

1. Advanced Cooling Technology:

   • Utilizes the latest oil-immersion cooling technology for effective heat dissipation.
   • Engineered to maintain optimal operating temperatures, safeguarding the transformer's performance.

2. Rugged and Reliable:

   • Constructed with the highest quality materials to ensure durability and resistance to harsh conditions.
   • Built to last, withstanding the test of time and environmental wear.

3. Safety-Oriented Features:

   • Equipped with advanced safety mechanisms, including pressure relief devices and temperature indicators.
   • Complies with all relevant safety standards and regulations for peace of mind.

4. Versatility in Application:

   • Compatible with various transformer models and sizes, offering a universal solution for thermal management.
   • Customizable to suit specific project needs and configurations.

5. Eco-Friendly Design:

   • Designed with environmental sustainability in mind, minimizing the ecological footprint.
   • Promotes energy efficiency and contributes to a greener future.

Technical Specifications:

• Cooling Method: Oil-immersion for efficient heat transfer and uniform cooling.
• Materials: Premium-grade aluminum or copper for high thermal conductivity and durability.
• Design Options: Fin or tube configurations for enhanced heat exchange capabilities.
• Mounting Solutions: Flexible mounting options for seamless integration with existing systems.
• Maintenance Requirements: Minimal, ensuring cost-effective operation and longevity.
• Certifications: ISO, IEC, and other industry-specific certifications for quality assurance.

Applications:

• Oil Immersed Transformer: Corrugated heat sinks are often used in oil-immersed transformers. By enhancing the heat dissipation function, the temperature of the transformer is ensured to be stable during long-term operation.
• Industrial and mining power grids and distribution transformers: In industrial and mining power grids and distribution transformers, corrugated heat sinks can effectively reduce the operating temperature of the equipment and extend the service life of the equipment.
• Power equipment in special environments: Corrugated heat sinks are suitable for harsh environments such as high temperature, high humidity, and high dust, and can ensure the stable operation of power equipment under these conditions.
